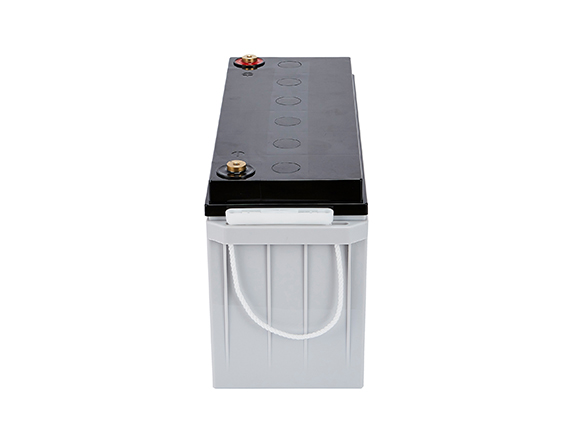

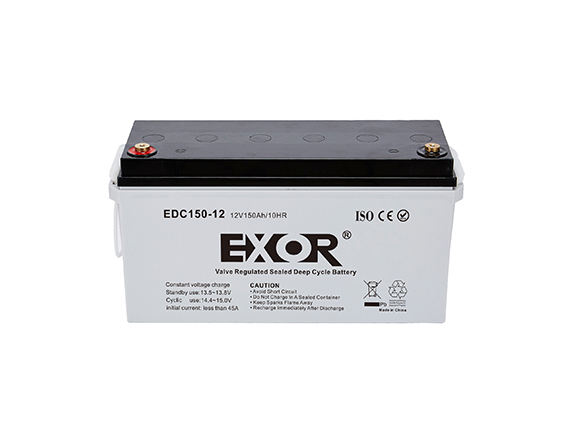

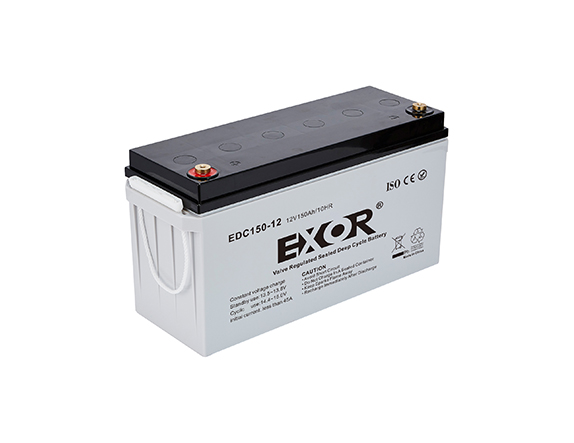

Deep Cycle Battery

Name: Deep Cycle Battery
Brand: JYC Battery Manufacturer Co., Ltd.

EXOR deep cycle battery series is a special design for frequent cyclic discharging, which adopts specific plates and excellent formulation of plates, using high strength plates to avoid internal short circuits and overheating. The battery has 12V, and a capacity range of 7~250Ah. Also, performing 12-year long floating service life, at 20℃ ( 68℉), deep cycle battery shows a high performance after deep discharge, cycle times up to 1,000 cycles at 30%DOD, and 350 cycles at 80%. With EXOR's revolutionary new TTP welding and heat sealing technology, the cost of battery subsequent investment can also be greatly reduced. Deep cycle battery is recommended in solar power systems, emergency power systems, UPS systems, medical equipment, telecommunication, energy storage system, etc.

Send Inquiry

Parameter Of Deep Cycle Battery

Model	Voltage	Capacity	Dimension								Weight		Terminal
		Capacity	Length		Width		Height		T.Height		(APPROX.)
		(Ah)	Length		Width		Height		T.Height		(APPROX.)
	(V)		(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(kg)±2.5%	(Lb)	Type	Layout
DC7-12	12	7	151	5.94	65	2.56	94	3.70	100	3.94	2.1	4.63	F1/F2 /B3-1	D
DC12-12	12	12	152	5.98	99	3.90	95	3.74	100	3.94	3.5	7.72	F1/F2	D
DC18-12	12	18	182	7.17	77	3.03	167	6.57	167	6.57	5.0	11.02	B1/T1	B
DC26-12	12	26	175	6.89	166	6.54	126	4.96	126	4.96	7.4	16.31	B2/T1	B
DC33-12	12	33	196	7.72	130	5.12	155	6.10	170	6.69	9.5	20.94	T2	A
DC40-12	12	40	198	7.80	167	6.57	173	6.81	173	6.81	12.0	26.46	T2	B
DC55-12	12	55	230	9.06	139	5.47	210	8.27	215	8.46	15.3	33.73	T2	A
DC65-12	12	65	348	13.70	168	6.61	177	6.97	177	6.97	20.2	44.53	T3	B
DC70-12	12	70	260	10.24	169	6.65	213	8.39	219	8.62	19.4	42.77	T3	A
DC80-12	12	80	260	10.24	169	6.65	213	8.39	219	8.62	20.8	45.86	T3	A
DC95-12	12	95	306	12.05	168	6.61	210	8.27	214	8.43	24.6	54.23	T4	A
DC100-12	12	100	330	12.99	172	6.77	218	8.58	222	8.74	29.0	63.93	T4	A
DC120-12	12	120	406	15.98	173	6.81	216	8.50	233	9.17	33.0	72.75	T4	A
DC150-12	12	150	481	18.94	170	6.69	242	9.53	245	9.65	43.7	96.34	T5	A
DC200-12	12	200	522	20.55	240	9.45	221	8.70	226	8.90	57.0	125.66	T5	C
DC250-12	12	250	522	20.55	268	10.55	220	8.66	225	8.86	66.2	145.95	T5	C

Application of Deep Cycle Batteries

Electronic toys
UPS & EPS System
Generator Starting
Solar Power / Wind Power Systems
Electronic powered vehicles/golf cars and buggies

Products

Hot Sale Batteries

GET IN TOUCH WITH OUR BATTERY EXPERTS TO RECEIVE A TIMELY REPLY WITHIN 24 HOURS.



Related VRLA Batteries



Front Terminal Battery

EXOR front terminal battery is specially designed for 19 inches and 23 inches electric cabinets. This series makes you feel more relaxed and unhurried pace in doing some simple alterations to your power cabinet, easy to install, maintain and supervise.

High Rate Battery

With the development of various industries, the demand for a battery with a higher discharge rate and a faster charge is more essential, EXOR high rate battery series will be your best option. A variety of sizes and capacities meet your needs for different applications.

GEL Battery

You no longer need to deal with dangerous and harmful substances while you choose the EXOR GEL battery series! No more acid leakage during unexpected dumping. Specialized gel electrolyte is extremely resistant to harsh elements, shock, vibration, and corrosion.

General Purpose Battery

JYC General Purpose (GP) Series VRLA batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to give extra power output for common power backup system.
